GRID RESILIENCY
AT SCALE - EVRC™
ENERGY STORAGE
AT SCALE

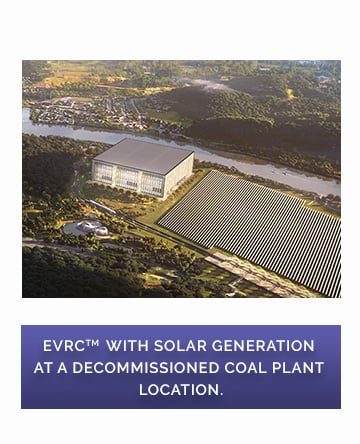

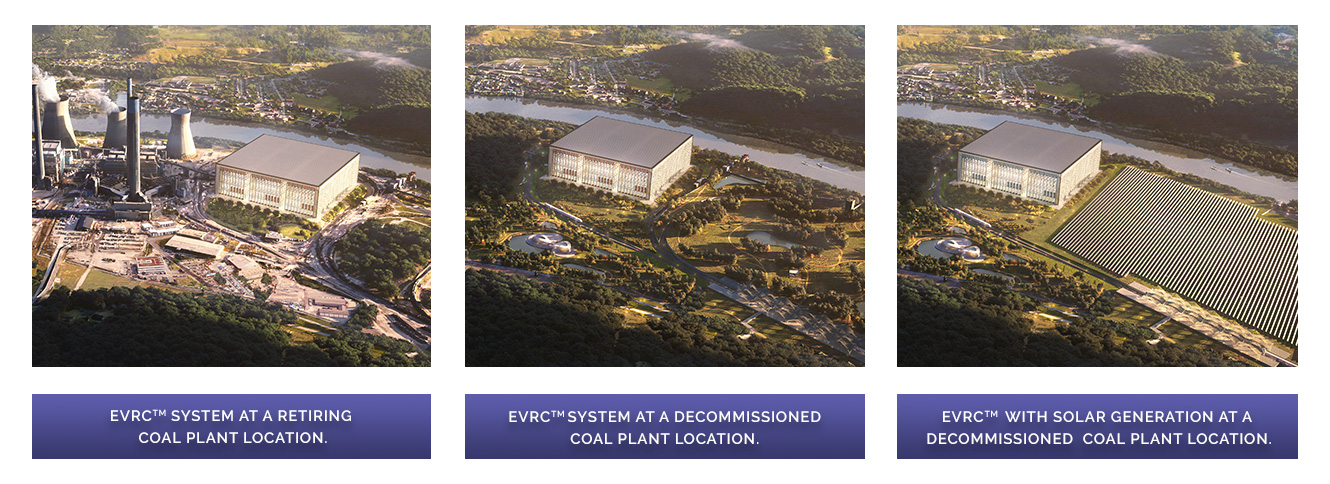

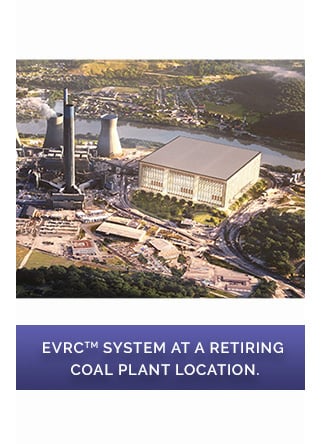

The Energy Vault Resiliency Center™ (EVRC™) is a highly scalable and modular system architecture that is built to scale to manage energy disruptive climate events such as wildfire or extreme weather. Using the EVx™ design as a building block, the EVRC™ can be built out in 10MWh increments that can scale to multi-GW-hour storage capacity.
Importantly, the new platform is designed to be 40 percent shorter in height than the original tower design and utilizes the same composite block weights that can be made from waste and remediation material for beneficial re-use, such as coal combustion residuals (coal ash), fiberglass from de-commissioned wind turbine blades and waste tailings from mining processes.
FEATURES & BENEFITS
EVRC™ is the latest iteration of Energy Vault’s product offering. We have worked with customers to design modular architecture that is more flexible and durable than our original EV1 tower.
Modular solution
Viable for short and long durations
Resilient to harsh conditions
Resilient to high ambient temperatures
No chemical fire risk
No performance reduction over time
Built to meet international building standards
Built with local supply chain and labor
PHOTOS & VIDEOS
GALLERIES
Click below to view Energy Vault’s latest videos and product photo galleries.
Video GalleryEVRC™ Photo Gallery
Frequently asked questions
What is gravity storage?
- Gravity storage refers to the use of energy to place objects at height that are then lowered under natural “gravitational” force to create physical movements which turn mechanical motors and create electricity that can be dispatched to the grid. Inspired by the widespread use of pumped hydro - where excess electricity pumps water up a dam and is then released to drive a turbine to create electricity - Energy Vault’s storage system relies on the elegant power of gravity to store and release kinetic energy.
How does the Energy Vault system work?
- During periods when electricity generation from renewables exceeds the grid demand, Energy Vault utilizes this electricity to power Energy Vault’s proprietary crane system to lift composite bricks that are assembled and stacked by autonomous software; this is especially useful during periods of high renewable generation but low demand as is the case with solar PV.
- When the bricks are stacked at height, the system is fully “charged”, with each of the bricks representing ~1MW of potential energy to be discharged when needed. When power is needed, the software orchestrates the sequential lowering of the bricks thus creating electricity through the kinetic energy released from weight turning large motors that generate and dispatch electrical energy.
What are the advantages of Energy Vault over chemical batteries?
- Energy Vault has 5 key advantages over chemical batteries:
- Energy Vault provides an economical advantage over chemical batteries and does not rely on uncertain future chemical roadmaps and future reductions in cost.
- Energy Vault storage medium and mechanics fundamentally do not degrade over time.
- Energy Vault’s sustainable production design uses of locally sourced materials, including the ability to use waste materials that would otherwise be landfilled. Chemical batteries are future landfill liabilities and are hazardous materials.
- Energy Vault is immediately scalable due to developed and existing global supply chain ecosystem of large suppliers, local site assembly/fabrication and not competing for scarce resources (i.e. lithium ion).
Where can Energy Vault be deployed?
- Energy Vault’s system is suitable to most industrial and non-urban or suburban locations. Locations will be primarily collocated with PV Solar, Wind and other industrial/manufacturing sites where larger structures and broad landscapes that are not densely populated are common.
What is most distinctive about Energy Vault’s technology?
- Energy Vault delivers all of the sustainability and simplicity of pumped hydro storage with greater flexibility. Energy Vault can deliver all the benefits of a large scale pumped hydro storage system, but at a much lower levelized cost, higher roundtrip efficiency and without the requirement for specific land topography and negative environmental impacts. Most distinctive to Energy Vault’s solution is our unique approach to the circular economy which incorporates utilization of local industrial and energy waste (such as remunerated coal ash and recycled wind blades) converted to recyclable materials to build the system’s composite bricks.
